A set of Prosport Front Adjustable Drop Links for Fiat 500 – 2007 onwards

All the details about these Prosport:

Adjustable Drop Links for Fiat 500

Key Features:

Can be used to make shortened drop links for lowered cars.
Supplied with three different length intermediate link bars to allow varying sizes.
All steel construction.
M10-M12 fitment adapter.
Reduces strain on OEM – specification components after lowering.
Can also be made to match many OEM-specification lengths – see specs below.
Corrosion-resistant finish.

These Adjustable Shortened Drop Links are compatible with:

Fiat 500, made from 2007 onwards
Includes facelift models where applicable.

Why are Shortened Drop Links needed?

Depending upon the model, sometimes after lowering a car, the OEM drop links simply won’t fit because they are too long. This is because the distance between the upper and lower mounting points of the original anti-roll bar link can be reduced.
Shortened drop links prevent excessive strain from being applied to the links and mounting points.
So, fitting a set of Prosport Shortened Drop Links will bring these benefits:
• Prevents strain on the drop link ball joints and mounting bracket.
• Avoids premature wear on the ball joints.
• Prevents contact with drive shafts or other components, avoiding noise and reduces the risk of damage.

Specifications in Detail:

This set can make the size ranges as shown below:
Short: 150-170mm
Medium: 215-235mm
Long: 270-290mm
Thread size: M10 with M12 Adapter

Good to Know:

These Prosport shortened drop links are suitable for the front of the vehicle only.
Drop links can also be called “Anti-Roll-Bar Links” or “Sway Bar Links”.
These Prosport Shortened Drop Links are a direct replacement for the OEM parts.
Never use an air-ratchet/electric gun or similar to tighten the nuts – this can damage the ball joints, rubber boots or threads. There is a hex recess in the end of the threaded section to enable use of a H4 allen key to prevent rotation whilst fitting the nut. Alternatively, a slimline 15mm spanner can be used on the flattened surfaces at the base of the threaded section of the ball joint assembly.

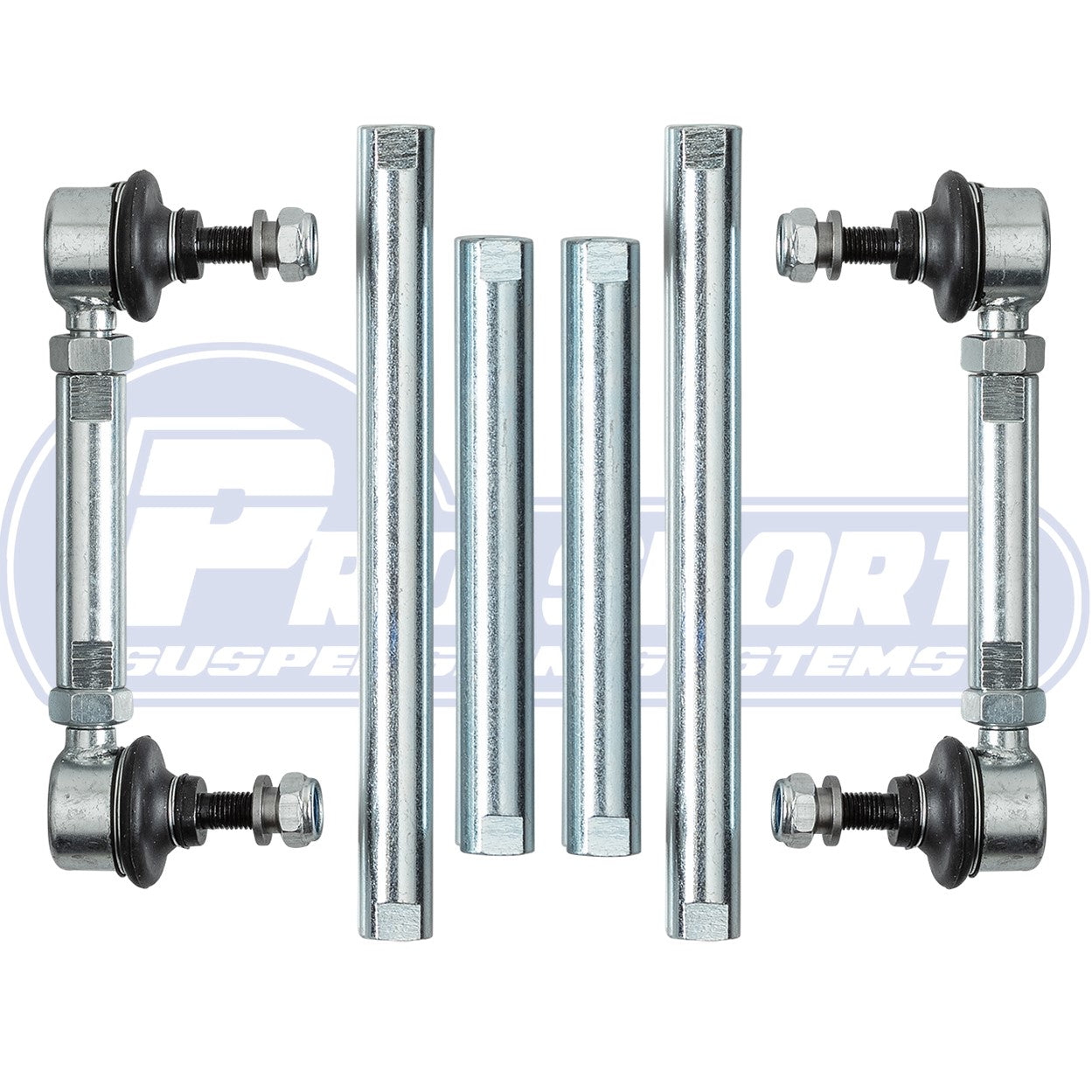

In the Box:

RH Threaded Ball Joint x2.
LH Threaded Ball Joint x2.
80mm Link Bar x2.
150mm Link Bar x2.
200mm Link Bar x2.
M10-M12 adapter (these are included with the ball-joints).
You’ll need the following tools to fit these Shortened Drop Links:
H4 Allen Key or Slim-line 15mm Spanner.
16mm Spanner.
17mm Ring Spanner.
19mm Spanner.

Kit Number: 130008
Adjustable Drop Links for Fiat 500
