HEL Fiat 500 All Models excluding 1.4 2008- Brake Lines HEL Stainless Steel Braided
Couldn't load pickup availability

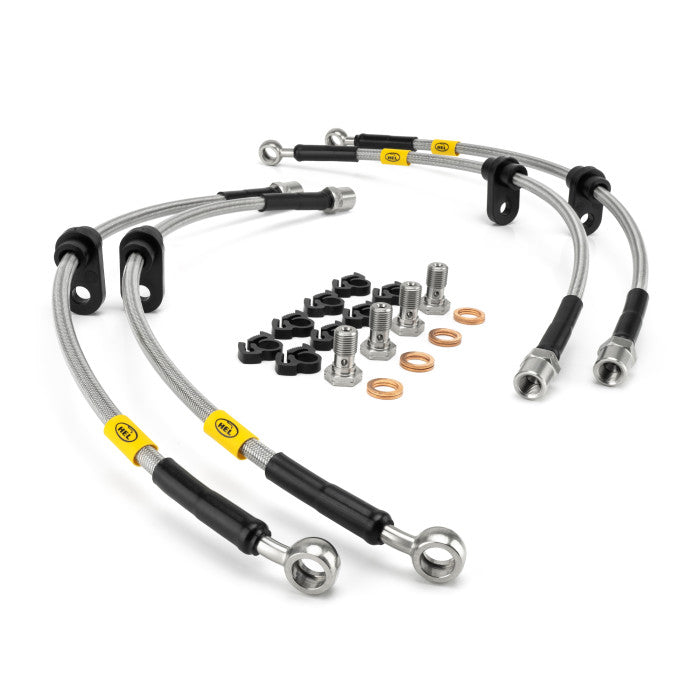

The HEL Performance Fiat 500 braided brake line kit has been manufactured in-house, assembled, and machine-crimped directly onto high-quality stainless steel braided hose ensuring an exact match to your standard brake hoses. Each HEL brake line kit arrives complete with every essential component, resulting in a smooth and straightforward installation.
PLEASE NOTE - THIS IS FOR ALL THE MODELS OF THE FIAT 500 EXCEPT THE 1.4L
Images are for reference only and do not show the exact product you will receive. The product delivered will be specific for your application. If you have any fitment questions, please contact us before ordering.
What's Included
- Stainless Steel Braided Brake Hoses & Fittings
- Copper Crush Washers*
- Mounting Components*
- Lifetime Warranty - Contact us to register warranty
- Installation Leaflet
*Only provided if required.
| AN Hose Size | AN3, AN03, -3 |
| Internal Diameter | 3mm, 1/8" |
| External Diameter | 8mm, 5/16" |
| Weight (Per Metre) | 71g, 0.16lbs |
| Inner Material (Core) | PTFE |
| External Material (Overbraid) | Stainless Steel - 303/304 |
| External Material (Outer) | PVC (Transparent or Coloured) |
| Fitting Material (Hose End) | Stainless Steel - 303/304 |
| Minimum Temperature | -70°C -94°F |
| Maximum Temperature | 250°C, 482°F |
| Operating Pressure | 4206 PSI, 290 BAR |
| Burst Pressure | 12618 PSI, 870 BAR |
| Minimum Bend Radius (90°) | 19mm, 0.7" |
| Fluid Compatibility | Petrol, E5, E10, E85, Race Fuel, Methanol, Diesel, Nitrous Oxide, Engine & Hydraulic Oil, Air, CO2, Coolant, Water, Brake & Clutch Fluid (DOT) |
| Brand | HEL Performance |
DISCLAIMER - IT IS THE BUYERS RESPONSIBILITY TO ENSURE THAT ALL COMPONENTS AND PARTS ARE FITTED CORRECTLY BY A PROFESSIONAL AND WILL NOT REPLACE/REPAIR ANY DAMAGE CAUSED BY THE INSTALLER. FAILURE TO DO THIS COULD RESULT IN INJURY, FAILURE OR ACCIDENT.
